Peel Type Blind Rivets

From design, manufacturing, quality control, to assembly applications, everything is built for better connections

Keywords:

Rivets

Category:

Description

Features and Benefits

  • The CRACKED tail molding ideal for riveting of metal sheets and woods, sheets or low-density plastics
  • The large pressure bearing surface is extended to blind hole, providing high retaining force
  • Ideal replacements of wood screws and self-tapping screws.



Material

  • Steel



Application Areas

  • Automobile
  • Railway systems
  • Medium & high voltage cabinet
  • Home appliance
  • Other industries



A

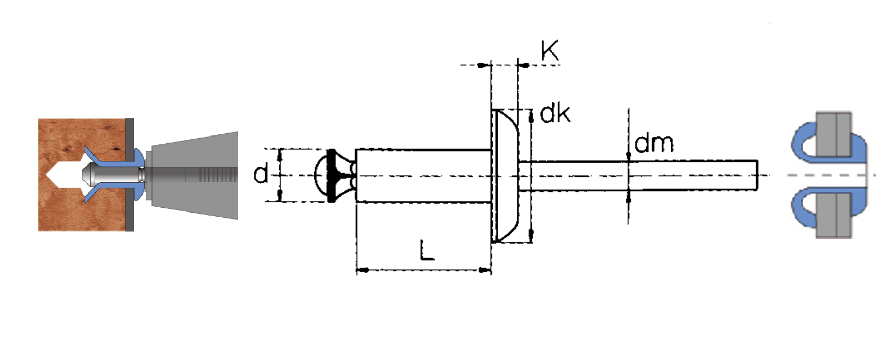

Specification

d mm L mm
3.2  10.0  12.0  14.0  16.0  18.0
4.0  10.0  12.0  14.0  16.0  18.0  20.0
4.8  10.0  12.0  15.0  18.0  21.0  25.0  27.0  30.0  35.0
6.4  12.0  15.0  18.0  21.0  25.0

 * Large flange are available upon request
